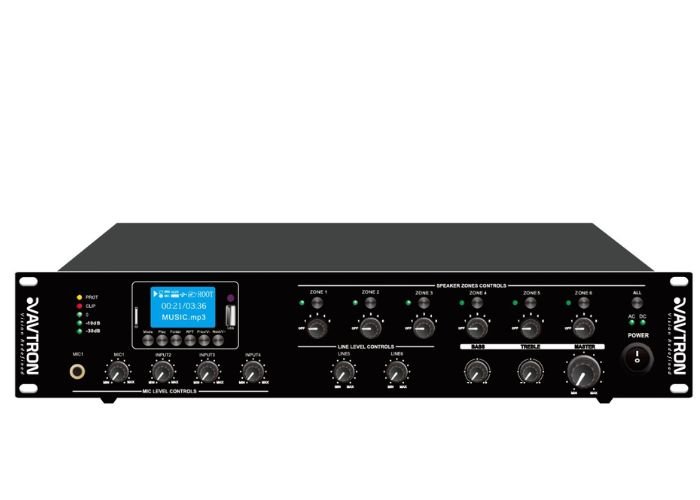

AP-ZP500

6 Zone 500W Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth

Categories:

6 Zone 500W Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth

Features :
    • Public address (PA) 6 zone commercial mixer power amplifier
    • 19” rack mount amplifier of 2U height
    • Rated outputs of 500W
    • 6 zone speaker outputs of 100V
    • Single zone 100V/70V/4-16 Ohm speaker outputs
    • Six zone speaker outputs with independent volume control
    • Built-in media player with MP3/USB/FM tuner/Bluetooth
    • Mic1 input 6.3mm jack with VOX highest priority
    • Mic/Line input 2-4 balanced XLR with mic/line switch and +48V phantom power selector
    • Line 4-5 inputs on rear panel by RCA
    • EMC input by RCA on rear panel with secondary priority except MIC1
    • One amplifier capacity of 6 remote paging microphones AP-ZPS up to 300 meters
    • Volume control for Mic1-4 and line 1-2, bass/treble/master and 6 zone volume control on front panel
    • Visual indicators include AC and DC Power, protection, clip, 6 zone status and output level meters
    • Complete amplifier protection includes overload, clip, short circuit and high temp protection
    • 230V AC and 24V DC operation system

The AP-ZP500 from Avtron Technologies is a professional-grade 6 Zone 500W Mixer Amplifier tailored for public address and commercial sound systems. Built into a 2U 19” rack-mountable chassis, this powerhouse amplifier delivers robust and efficient performance, supporting a variety of modern audio applications.

With a rated output of 500W, the AP-ZP500 features 6 zone speaker outputs (100V) and a single zone output supporting 100V/70V/4-16 Ohm configurations, making it highly adaptable for different speaker setups. Each of the six zones includes independent volume control, allowing precise sound management across multiple areas.

It comes with a built-in media player supporting MP3 playback, USB, FM radio, and Bluetooth connectivity, ensuring seamless access to various audio sources. The Mic1 input via a 6.3mm jack includes VOX priority, giving it the highest priority in signal routing.

Additionally, Mic/Line inputs 2-4 are provided with balanced XLR connectors, a mic/line switch, and +48V phantom power, perfect for professional microphones. Line inputs 4-5 are available on the rear panel via RCA, and the EMC input also via RCA offers secondary priority, excluding Mic1.

The AP-ZP500 supports up to six AP-ZPS remote paging microphones with a range of up to 300 meters, making it ideal for large-scale installations. Front-panel controls allow adjustment of Mic1-4, Line 1-2, bass, treble, master volume, and all six zone levels.

LED indicators display the status of AC and DC power, protection circuits, clip detection, zone activity, and output levels. Built-in protection mechanisms ensure safety from overload, short circuits, clipping, and overheating.

Dual power operation via 230V AC and 24V DC ensures continuous functionality in various environments, making the AP-ZP500 a versatile, durable, and feature-rich amplifier solution for commercial and industrial audio projects.
